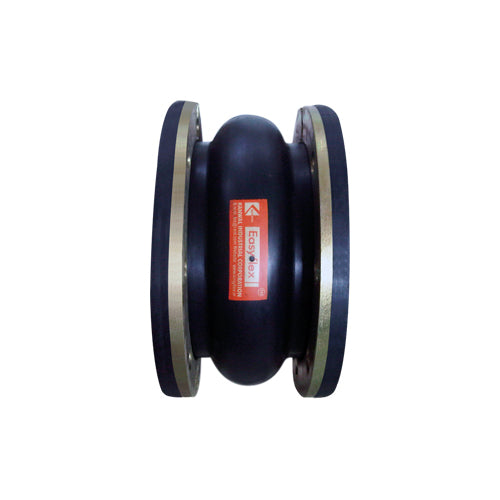

Easy Flex Rubber Bellow Suppliers in Shirwal

Kolkata Pipe Fittings is an Ultimate Easy Flex Rubber Bellow Suppliers, Dealers, Stockists and Traders in Shirwal. The Easyflex Rubber Bellow (also called a rubber expansion joint) is a non-metallic connector that is a flexible tool that is specifically designed to alleviate stress in piping and ducting systems of industries. The professional product is made of the high quality of synthetic or natural elastomers and reinforced with the textile cords, which is mainly used as a safety and performance-enhancing component. Comes in many designs such as Single Arch, Double or, and Spherical Connector.

What is Easy Flex Rubber Bellow?

Easy Flex Rubber Bellow Suppliers in Shirwal is a flexible connector/joint, made of high-grade elastomeric materials Bellow EPDM, Neoprene, NBR, or Natural Rubber, which is needed to absorb vibration, noise, and thermal expansion in piping systems. It is a variable balancer between two pipelines or moving components of machines, which may move in their axial direction, in the sideways direction and the angles. It is also flexible enough to prevent stress, misalignment and destruction on the basis of the changes in pressure, temperature and vibration of equipment.

Types of Easy Flex Rubber Bellow

Being the Brilliant Easy Flex Rubber Bellow in Shirwal, we are providing the best quality of Easy Flex Rubber Bellow such as:

Typical forms of Easy Flex rubber bellows.

Twin Sphere Connectors: Easy Flex Rubber Bellow Suppliers in Shirwal This kind of connector is a union-threaded or non-union-threaded type of expansion joint.
Duct Type: Expansion Rubber Bellows are a duct expansion joint that is especially created to be used in ductwork.
Single and Double Arch: Easy Flex Rubber Bellow are common types of structures that are used to minimize vibrations and stress within the piping systems.
Floating Flange: Rubber Expansion bellow is employed to eliminate the vibration and is suitable in motion compensation and noise reducing in all pipelines.
Filled Arch: It is an extension whereby the arch is filled to be used in special purposes.

Technical Specifications of Easy Flex Rubber Bellow

We've added below a specialized table of Easy Flex Rubber Bellow in Shirwal that provides further technical specification information:

Parameter	Technical Details
Product Name	Easy Flex Rubber Expansion Bellow
Design Standard / Code	ASTM F1120 / ASTM F1123-87 / FSA PSJ-701-06 / BS 5212
Nominal Bore (NB Range)	25 mm NB to 1800 mm NB
Material of Construction (Bellow Element)	Neoprene / EPDM / Nitrile / Butyl / Natural Rubber
Reinforcement Material	Nylon Fabric / Polyester Cord / Steel Wire Reinforced Layers
End Connection Type	Flanged Ends / Floating Flanges / Tied Ends / Reducer Type
End Connection Material	Carbon Steel (IS 2062 Gr. B) / Mild Steel / Stainless Steel (SS304 / SS316)
Flange Drilling Standard	ANSI B16.5 Class 150 / BS 10 Table D–H / DIN PN10–PN16
Design Pressure Rating	7.5 kg/cm² (25–600 NB) 6.0 kg/cm² (650–1600 NB) 4.5 kg/cm² (1600–1800 NB)
Test Pressure	1.5 × Design Pressure (Hydrostatic Test)
Operating Temperature Range	–10 °C to +70 °C (depending on rubber compound)
Axial Movement	±10 mm to ±25 mm (as per size and construction)
Lateral Movement	Up to 20 mm
Angular Movement	Up to 15°
Vacuum Rating	Full Vacuum up to –26″ Hg
Cycle Life (Fatigue Life)	5,000 to 10,000 Cycles
Leakage Rate	Nil (Under Hydrostatic Test)
Surface Finish / Coating	Weather-Resistant Rubber Finish / Painted Metallic Flanges
Corrosion Resistance	Rubber Compounds Tested as per ASTM D2000 Standards
Applicable Media	Water, Air, Oil, Gas, Mild Chemicals, and HVAC Fluids
Installation Orientation	Horizontal / Vertical / Angular
Manufacturing Tolerance	±5% on dimensions and movement range

Benefits/Features of Easy Flex Rubber Bellow

One of the popular Easy Flex Rubber Bellow Dealers in Shirwal, our all types is made with new and upgraded features inside and gives multiple benefits such as:

Thermal Movement Compensation: Expansion Rubber Bellows they absorb and accommodate movement (axial, lateral, and angular) that is introduced by the thermal expansion and contraction of pipes as a result of temperature variation in the fluid or the environment. This will avoid accumulation of destructive stress in the piping system.
Misalignment Correction: Rubber Expansion Joints for HVAC They readily correct small, fixed or dynamic misalignment that can take place when starting up equipment, or when laying the pipes initially.
Eliminates Pipe Buckling and Joint Separations: They relieve stress, and thus prevent buckling and separation of pipes, and fracturing of the pipes and thus considerably extend the life of the complete system.
Vibration Isolation: The rubber construction with no metallic component is great damping water and it is a very good way of isolating and absorbing the mechanical vibrations of the rotating machine such as pumps, compressors and chillers.
Vibration Dampening: Easyflex Rubber Pipe Expansion Joints they also dramatically lower the level of structural-borne noise transmission in the pipe walls resulting in a quieter operating environment.

Applications of Easy Flex Rubber Bellow

As popular Easy Flex Rubber Bellow Traders in Shirwal, our all types are used in various types of industrial sectors such as:

Pumps, Compressors, and Chillers: Easy Flex Rubber Bellows are mounted directly next to these machines in order to absorb and isolate the operation vibration and noise so that the vibration does not propagate along the pipeline.
HVAC Systems: Easyflex Floating Flange Rubber Expansion Joint is used on chiller lines, cooling towers and air handling units to support the movement and reduce the noise/vibration.
Water and Wastewater Treatment Plants: Easy Flex Single Arch Rubber Expansion Joint are used to control the expansions and contractions of large pipes and their anti-corrosive feature is suited to handle the raw sewage, sludge, and chemically treated water systems.
Generation Plants: easyflex rubber expansion bellow single arc are used in condenser lines, cooling water systems and exhaust lines to absorb extreme thermal expansion and contraction and sustain dynamic loads.
Chemical and Petrochemical Processing: Application in piping where the contents are corrosive or abrasive slurry and chemicals, and the elastomer material used (such as Neoprene or PTFE-lined rubber) has been selected because of chemical compatibility.

Why choose us?

Kolkata Pipe Fittings is a trusted of high-quality Easy Flex Rubber Bellow Stockists in Shirwal. Here’s why we stand out:

Premium Quality Materials:
Easy Flex Rubber Bellows are made of high grade elastomers such as EPDM, NBR and Neoprene that have high flexibility, durability, resistance to corrosion and chemical resistance.
Precision Engineering:
Being on international standards, meant to be tested and designed, our bellows are highly performing in terms of vibration, noise and thermal motion absorption.
Customized Solutions:
Easy Flex Rubber Bellow provides custom designs and sizes, and connection types, which are the best to fulfill your needs of the system and its working conditions.

Kolkata Pipe Fittings is a Prominent Easy Flex Rubber Bellow Suppliers, Dealers, Stockists and Traders in Shirwal. Easyflex Rubber Bellows are versatile and multi-purpose flexible connectors that are highly vital in assuring the safety and efficiency of piping systems in different industries, including HVAC, power generation, and chemical processing, as well as water treatment. Their main purpose is to counteract the inherent difficulties of fluid conveyance: they absorb, and isolate movement (axial, lateral, and angular), due to temperature variations and seismic forces, as well as suppressing destructive mechanical vibration and noise due to the fact that they are linked with other equipment such as pumps and chillers.
