Carbon Steel Elbow Manufacturers, Suppliers in Pune

Welcome to the Carbon Steel Elbow Manufacturers, Suppliers in Pune. We are providing Carbon Steel Elbow in Pune for the applications like Oil and Gas Industry, Chemical and Petrochemical Industry, Water Treatment Facilities, Power Generation Plants, etc. Contact us now for the Carbon Steel Elbow Manufacturers in Pune|Kolkata Pipe Fittings

Leading Carbon Steel Elbow Manufacturers, Suppliers, Dealers, Stockist, Traders in Pune, Maharashtra Since 1994. Kolkata Pipe Fittings, the trusted Carbon Steel Elbow Manufacturers & Suppliers in Pune. We are committed to serving customers nationwide, prioritizing customer satisfaction and sustainable growth in all our endeavors. Our focus is on fostering long-term relationships with our clients.

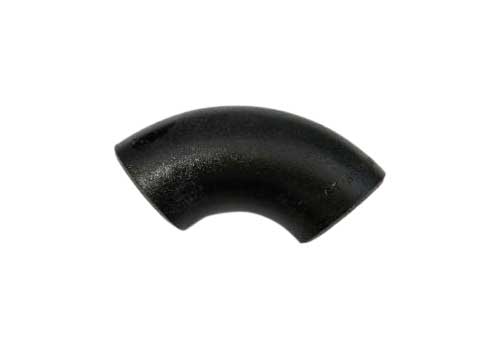

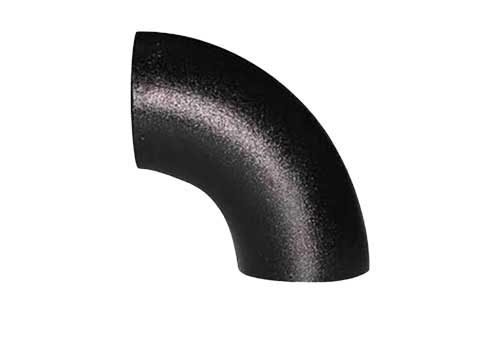

A carbon steel elbow, often known as a CS elbow, it is a kind of pipe fitting that is used in plumbing systems to change the direction of flow. Although they are most frequently utilized at 90- or 45-degree angles, they are also available for use at 22.5-, 60-, and other levels depending on what is needed. Oil and gas, chemical, water treatment, and power plant applications are just a few of the industries that use carbon steel elbow. We provide a variety of threaded or welded connections.

Features of carbon steel elbows / CS elbows

• Material: We use carbon steel to make CS elbows because it is an affordable and adaptable material with good machinability and weldability.
• Angle: The most commonly used carbon steel elbow bends are 90 degrees and 45 degrees, but they are also available in a range of other angles, including 22.5 degrees and 60 degrees, as well as we a leading Carbon Steel Elbow Manufacturers, Suppliers in Pune provides custom bends that match particular piping system requirements.
• Connection Types: There are two primary ways to connect CS elbows to pipes:
  • Welded: This is the most popular type, which provides a long-lasting and secure connection for high-pressure uses. There are two varieties available:
    • Butt weld: To provide a smooth butt joint for welding, the elbow and pipe ends are curved.
    • Socket weld: A socket is located on one end of the elbow, into which the pipe is inserted to facilitate the welding process.
  • Threaded: The threaded ends of these elbows screw over pipes that have threads. They are easy to disassemble for maintenance and are suitable for applications with lower pressure.

• Radius: The radius of curvature of carbon steel elbows distinguishes them into two categories:
  • Long radius elbows: The flow changes direction more smoothly with these elbows because of their larger radius of curvature, which is usually 1.5 times the pipe diameter. This is perfect for high-flow or high-pressure applications since it minimizes pressure drop.
  • Elbows with a short radius: These elbows create a tighter turn because of their smaller radius of curvature, which is usually equal to the pipe diameter. Although they are more affordable and compact, the sharper turn may result in greater pressure drops.

Specifications of Carbon Steel Elbow/ CS Elbow

Material:

• We use the carbon steel grades A420 Gr. WPL6 or ASTM A234 Gr. WPB to make carbon steel elbows.
• These grades are suitable for a range of piping applications because they provide a great combination of strength, cost, weldability, and machinability.

Dimensions:

• To suit a range of pipe diameters, CS elbows are available in multiple sizes. ½ inch to 48 inches are the usual range for standard sizes.

Thickness:

• The carbon steel elbow's wall thickness must be taken into consideration. A schedule number (Sch), which represents the minimum wall thickness about pipe diameter, defines this. For CS elbows, common schedules are Sch 40, Sch 80, and Sch 160.

Rating of Pressure

• The carbon steel elbow's maximum safe pressure at a specific temperature can be determined by its pressure rating. Usually, it is measured in pressure classes or pounds per square inch (psi).
• The working pressure and temperature of the pipe system must be considered while selecting the proper pressure rating, which is necessary for system safety.

Standards

• ASME B16.9: Fittings for butt-welding wrought steel are covered by this standard.
• ASME B16.11: Socket-weld fittings made of wrought steel are covered by this standard.
• ASME B16.25: This standard deals with butt-welding threaded elbows made of wrought steel.
• The Manufacturers' Standardization Society (MSS) has developed a standard called MSS-SP-75 that addresses ferrous wrought fittings that are butt- and socket-welded.

Applications of Carbon Steel Elbows/CS Elbows:

We as a foremost Carbon Steel Elbow, CS Elbow Dealers, Stockist, Traders in Pune, Maharashtra supply products to various industries for various applications.

• Oil and Gas Industry: CS elbows are essential components of the pipelines that transport natural gas, crude oil, refined goods etc. These demanding applications are a good fit for them because of their strength and resistance to high pressure.
• Chemical Processing: CS elbows are used to navigate pipes providing corrosive liquids, acids, and other chemicals in chemical facilities. The particular chemicals being transported are taken into consideration while selecting the right type of carbon steel elbows.
• Water Treatment Facilities: For directing the flow of water through steps of treatment like filtration and sterilization, CS elbows are used in piping systems in water treatment plants. They are a suitable option due to their reasonable price and durability to corrosion from treated water.
• Power Generation Plants: Carbon steel elbows are used in power plants for several tasks, such as regulating the flow of water in cooling systems, transporting steam during the generation of electricity, and navigating pipelines that contain fluids such as lubricants.
• Construction and Manufacturing: Industrial process pipe, compressed air lines, fire sprinkler systems, and plumbing systems are all installed in manufacturing plants with carbon steel elbows. The ability to adapt to a range of applications is made possible by their availability in various dimensions and pressure ratings.
• Shipbuilding and Marine Applications: Fuel, saltwater, ballast water, and other fluids are transferred via CS elbows installed in pipe systems aboard ships and offshore installations. To survive the hostile saltwater environment, marine-grade carbon steel elbows with unique coatings or corrosion-resistant metals may be utilized.

We as Kolkata Pipe Fittings are leading Carbon Steel Elbows Manufacturers, Suppliers, Dealers, Stockist, Traders in Pune, Maharashtra. We offer essential pipe fittings that change direction in piping systems and improve workflow. They are made of strong yet affordable carbon steel and are available in a range of diameters, angles, and connection types (welded or threaded) to meet a variety of requirements. Their pressure rating guarantees safe operation for a variety of applications, and they are offered in long-radius (smoother turns) and short-radius (tighter bends) versions. Carbon steel elbows are crucial for effective flow management in a wide range of industries, from building plumbing to water treatment facilities and oil and gas pipelines. Contact us for a free consultation and we will recommend you the best possible carbon steel elbows solution to your needs.
