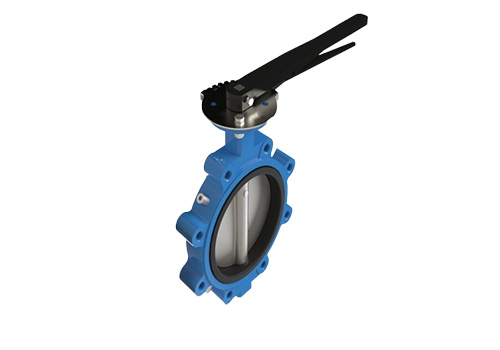

What is a Butterfly Valve?
Butterfly valve is a mechanical valve that is used for shut-off or control of fluid flow in pipelines. The central element of the valve is a metal disc that is placed in the middle of the pipe. A stem connected to an actuator or handle is used to drive this disc.
- When the disc is in parallel position to the flow, the valve is fully open.
- The valve is completely closed when the disc is perpendicular to the flow.
Butterfly valve systems are very effective in large diameter pipes as they require very little maintenance and take up less space than other industrial valves.
Importance of Butterfly Valves in Industrial Piping
Due to its versatility and efficiency of operation, the butterfly valve has an important place in industrial piping systems. They are often used in applications where fast shut-off and precise control of flow is critical.
An overview of the key importance of Butterfly Valves.
- Efficient Flow Regulation-Butterfly valves can be used to control flow smoothly with little pressure drop. The flow rate can be controlled by adjusting the disc opening by half or full turning of the disc.
- Compact Design-These valves are smaller in installation size compared to gate or globe valves and are perfect for small piping systems.
- Cost-Effective Solution-Butterfly valves are low cost valves for manufacturing, installation and maintenance.
- Fast Operation- Quick opening and closing make for efficient operations through the quarter-turn mechanism.
- Applicable to Large Diameter Pipelines- Because of its lightweight design, butterfly valves are a preferred choice of industries that require a large amount of fluid transfer.
How Butterfly Valves Working Principle
Butterfly valve working principle is simple and efficient. The valve has a rotating disc that regulates the flow of water within the pipe.
Working Process
- The shaft is moved by the valve handle or the actuator.
- The disc is held by the shaft which is rotating in the valve body.
- The flow rate depends on the position of the disc:
- Fully Open: Disc parallel to the flow.
- Fully Closed: Disc is perpendicular to the flow.
- Partially Open: (Controls flow quantity)
function of butterfly valve?
may be manually operated or automated by pneumatic, electric or hydraulic actuators.
Main Components of Butterfly Valve
- Valve Body
- Disc
- Stem/Shaft
- Seat
- Actuator or Handle
Parts of Butterfly Valve Cluster
The pressure, temperature and fluid type of the industry, determines the Butterfly Valves types design to be used.
1.Wafer Type Butterfly Valve
– Wafer Butterfly Valve is a valve that is installed between two pipe flanges. They're easy to transport and cost-effective.
Features
- Compact structure
- Leak-proof sealing
- Easy installation
- Cost-effective
Applications
- Water supply systems
- Chemical industries
- HVAC systems
2. Lug Type Butterfly Valve
– Lug butterfly valves feature threaded inserts so they can be fastened with bolts.
Features
- It is compatible with end-of-line service.
- Easy maintenance
- Strong body design
Applications
- Industrial process plants
- Gather oil and gas pipelines.
- Water treatment plants
3. Double Offset Butterfly Valve
– Also known as high-performance butterfly valves, these valves reduce friction between seat and disc.
Features
- High durability
- Better sealing performance
- It's a good fit for high pressure systems.
Applications
- Power plants
- Petrochemical industries
- Steam services
4. Triple Offset Butterfly Valve
– Triple offset butterfly valves are used for critical applications where there is no requirement for leak.
Features
- Metal-to-metal sealing
- High temperature resistance
- Long service life
Applications
- Refinery industries
- LNG plants
- Offshore applications
5. Flanged Butterfly Valve
– The valves are flanged at both ends to ensure tight connection in heavy duty industrial line.
Features
- Strong construction
- High-pressure handling capability
- Reliable sealing
Applications
- Water treatment
- Fire protection systems
- Industrial pipelines
Butterfly Valve Materials
Depending on the working circumstances, Butterfly valves are developed from various materials.
Common Body Materials
- Cast Iron-For low-pressure water systems.
- Ductile Iron-Provides increased strength and durability.
- Stainless Steel-It is used to provide corrosion resistance for chemical and marine purposes.
- Carbon Steel-It is suitable for high pressure industrial systems.
- PVC and CPVC-Used for light chemicals and water.
Seat Materials
- EPDM
- PTFE
- Nitrile Rubber
- Metal Seats
Applications of Butterfly Valves
Butterfly valves are used in a wide range of applications and are used in various industries, including:
- Water Treatment Plants- Used in the control of flow in treatment and distribution systems.
- Oil and Gas Industry-Regulates the flow of crude oil, gas and petroleum products.
- Chemical Industry- Butterfly valve advantages and disadvantagesUses corrosive/hazardous chemicals safely.
- HVAC Systems- Used in building heating, cooling and ventilation applications.
- Food & Beverage Industry- Controls hygienic fluid transfer processes.
- Marine Industry- In the shipbuilding industry and for pipelines offshore.
- Power Generation Plants- Regulates steam and cooling water flow.
Advantages of Butterfly Valves
However, there are a number of operational and economic advantages to using butterfly valves.
- Lightweight Design- They weigh less than some other industrial valves.
- Quick Operation-Fast opening and closing with a quarter turn operation.
- Low Maintenance-Easily constructed maintenance low.
- Compact Size-Requires less installation space.
- Cost Effective-Affordable compared to gate and globe valves.
- Good Flow Control-Provides efficient throttling performance.
- Versatile Applications- Applicable to liquids, gases, slurries and steam.
- Valve Size-Choose the appropriate valve size based on pipe size.
- Type of Operation- Choose between manual, pneumatic, hydraulic or electric operation.
- Sealing Requirements-Triple offset valves are suitable for leak-free applications.
- Material Compatibility- Use materials for the valve body and valve seat that are chemically compatible with the media.
Factors to Consider Before Buying Butterfly Valves
Industries should consider a number of key factors prior to buying butterfly valves.
- Pressure Rating- Select valves to meet system pressure requirements.
- Temperature Range- Check operating temperature compatibility.
- Corrosion Resistance- Use suitable materials in extreme conditions.
- Valve Standards- Make sure that industrial standards are followed.
- Automation Requirement- Select manual or automatic actuators as per operational requirements.
- Maintenance Needs- Use valves that can be easily maintained.
- Budget-Go through the quality, durability and prices.
What is the Difference Between a Butterfly Valve and a Gate Valve?
| Feature |
Butterfly Valve |
Gate Valve |
| Operation |
Quarter-turn |
Multi-turn |
| Opening Mechanism |
Rotating Disc |
Sliding Gate |
| Speed |
Fast operation |
Slower operation |
| Size |
Compact |
Larger |
| Weight |
Lightweight |
Heavy |
| Cost |
Economical |
More expensive |
| Flow Control |
Good throttling |
Mainly on/off |
| Maintenance |
Low |
Higher |
Butterfly Valve and Ball Valve Difference
| Feature |
Butterfly Valve |
Ball Valve |
| Closure Element |
Disc |
Ball |
| Operation |
Quarter-turn |
Quarter-turn |
| Weight |
Lightweight |
Heavier |
| Cost |
Lower |
Higher |
| Pressure Handling |
Moderate to high |
High |
| Flow Restriction |
Slight restriction |
Full bore available |
| Maintenance |
Easy |
Moderate |
| Best Applications |
Large pipelines |
High-pressure systems |
